CHRYSO® DP BONDING AGENT
CHRYSO DP BONDING AGENT is a two component solvent free thixotropic epoxy resin bonding system for joining old concrete to new concrete and old concrete to old concrete
Application
Apply a thin layer of DP BONDING AGENT with brush or squeeze
to the existing surface, working well into the substrate. Place
fresh concrete/mortar while it is still tacky (2-5 hours). A second coat of CHRYSO DP BONDING AGENT may be applied after the first thin layer of the applied DP BONDING AGENT passes its tacky stage, prior to placing the freshly mixed concrete or mortar. Good concrete practice should be followed in placing, consolidation and curing of concrete. While application, the substrate temperature should be at least 5°C but not above 40°C.
Safety
- Wear hand gloves, safety shoes and safety goggles while using and handling the product.
- In case eyes or mouth are affected wash with plenty of clean water and seek medical treatment immediately.
Advantages
- Provides a permanent bond
- Cures in both dry and damp conditions.
- Thixotropic ‐ can be applied on vertical and overhead surfaces without sagging
- Easy to mix and apply
- Excellent adhesion to most building material
- Can be used as bonding agent for mortars, renders, stone, steel, iron etc.

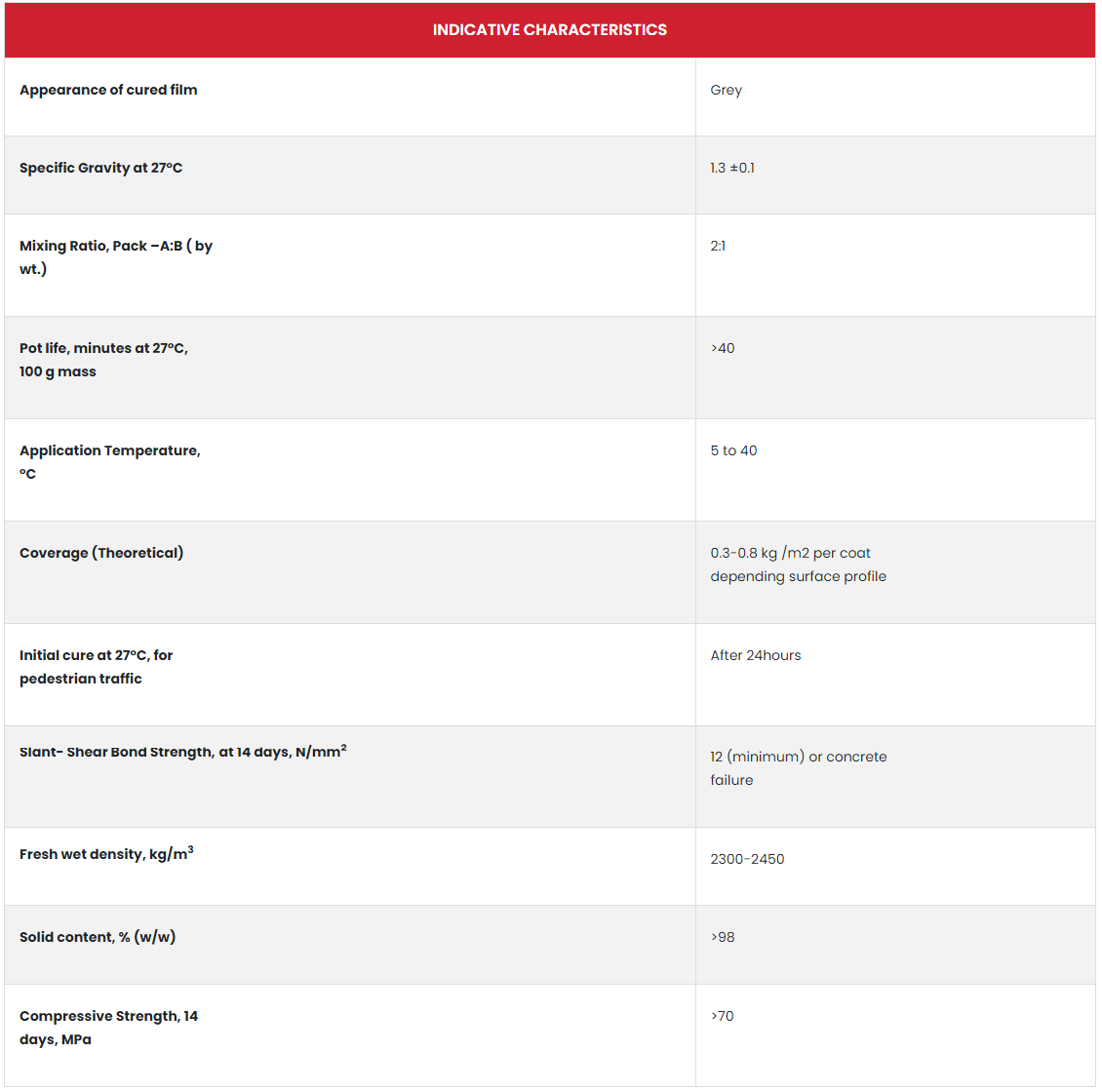

Indicative Characteristics
| Indicative Characteristics | |
|---|---|
|
Appearance of cured film |
Grey |
|
Specific Gravity at 27°C |
1.3 ±0.1 |
|
Mixing Ratio, Pack –A:B ( by |
2:1 |
|
Pot life, minutes at 27°C, |
>40 |
|
Application Temperature, |
5 to 40 |
|
Coverage (Theoretical) |
0.3-0.8 kg /m2 per coat |
|
Initial cure at 27°C, for |
After 24hours |
|
Slant- Shear Bond Strength,
at 14 days, N/mm2
|
12 (minimum) or concrete |
|
Fresh wet density, kg/m3
|
2300-2450 |
|
Solid content, % (w/w) |
>98 |
|
Compressive Strength, 14 |
>70 |
