Keyfix E
Keyfix E is a two component high strength pure epoxy resin anchoring grout pre packed in dual cartridge system with fast curing rate. Keyfix E is formulated for permanent installation of steel reinforcement bars and threaded rods into concrete substrates in structural applications.
Applications
Keyfix E is ideally designed for use in the following applications:
- Permanent installation of reinforcement starter bars and dowel bars.
- Permanent installation of hand rails, safety fence, wall ties, railway tracks and ground anchors.
Advantages
- Extremely dense.
- Exceptional high compressive.
- Resistant to dynamic loading.
- Exceptional rapid strength development.
- Exceptional bond to concrete and steel surfaces.
- Good chemical resistance.
- High ultimate and early strengths.
- Suitable for dry and damp concrete holes.
- Non-sag consistency suitable for overhead applications.

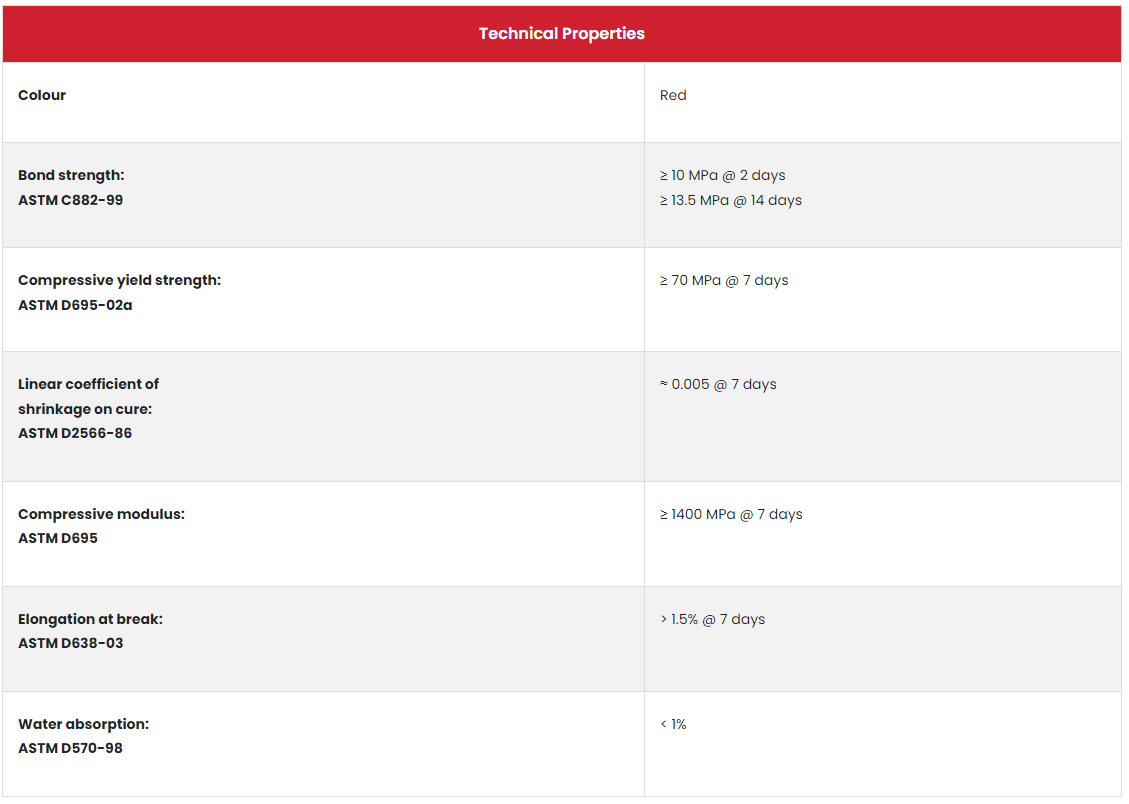

Technical Properties:
| Technical Properties | |
|---|---|
|
Colour |
Red |
|
Bond strength: |
≥ 10 MPa @ 2 days |
|
Compressive yield strength: |
≥ 70 MPa @ 7 days |
|
Linear coefficient of |
≈ 0.005 @ 7 days |
|
Compressive modulus: |
≥ 1400 MPa @ 7 days |
|
Elongation at break: |
> 1.5% @ 7 days |
|
Water absorption: |
< 1% |
