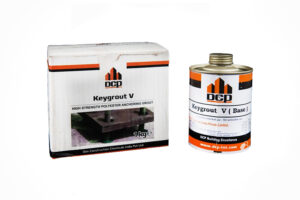

Keygrout V

Keygrout is a two components, high strength, fast cure,
polyester resin anchoring grout.

Applications

Keygrout is ideally designed for use in the following applications:

  • Permanent installation of reinforcement starter bars and dowel bars.
  • Permanent installation of hand rails, safety fence, wallties, railway tracks and ground anchors.
Products Catalogue

Advantages

  • Good chemical resistance.
  • Resistant to dynamic loading.
  • Exceptional rapid strength development.
  • Exceptional bond to concrete and steel surfaces.
  • Available into two grade, Keygrout H (Horizontal) and Keygrout V (Vertical).
  • High ultimate and early strengths.
  • Exceptional high compressive, fl exural and tensile strengths.
  • Damp tolerant. The product will cure under damp conditions and is resistant to immersion underwater.

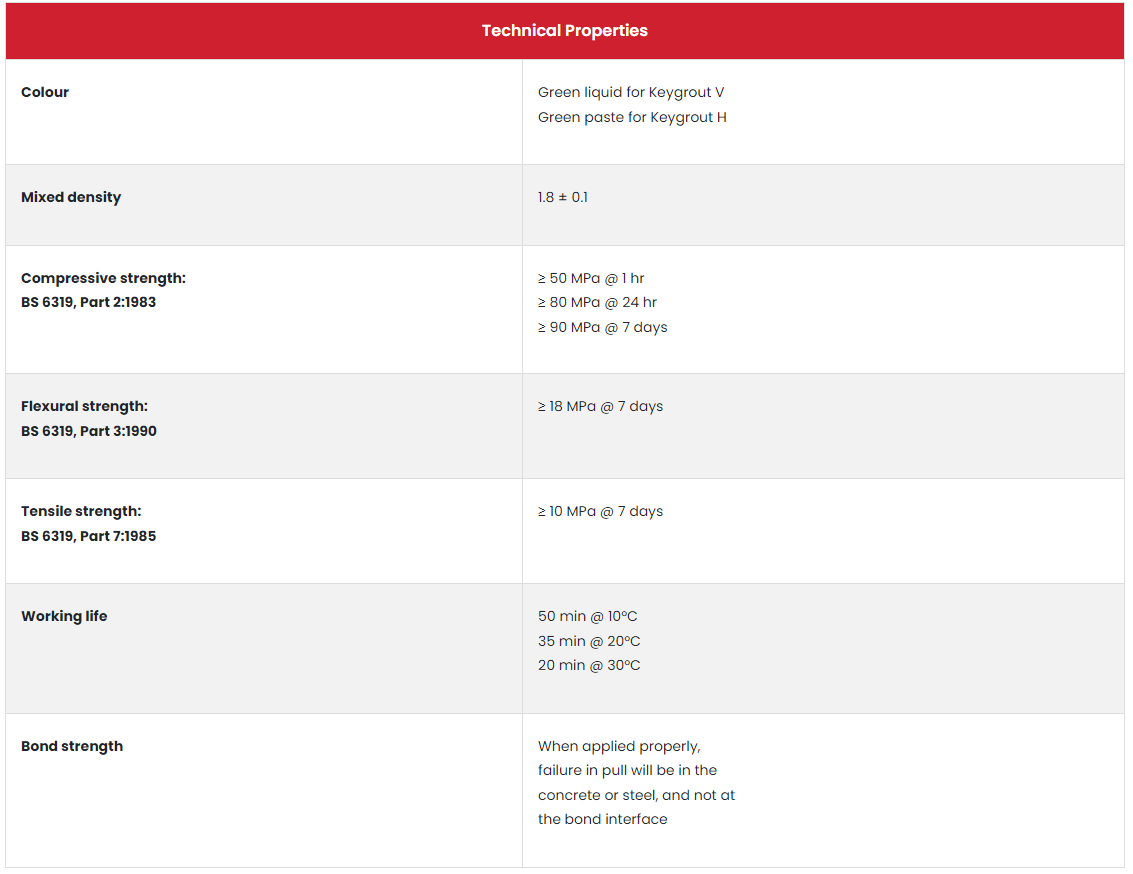

Technical Properties:

Technical Properties

Colour

Green liquid for Keygrout V
Green paste for Keygrout H

Mixed density

1.8 ± 0.1

Compressive strength:
BS 6319, Part 2:1983

≥ 50 MPa @ 1 hr
≥ 80 MPa @ 24 hr
≥ 90 MPa @ 7 days

Flexural strength:
BS 6319, Part 3:1990

≥ 18 MPa @ 7 days

Tensile strength:
BS 6319, Part 7:1985

≥ 10 MPa @ 7 days

Working life

50 min @ 10°C
35 min @ 20°C
20 min @ 30°C

Bond strength

When applied properly,
failure in pull will be in the
concrete or steel, and not at
the bond interface
