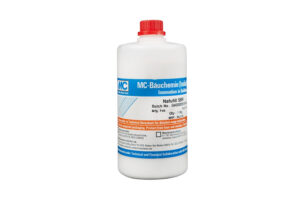

Nafufill SBR

Nafufill SBR is a high Sponification-resistant latex dispersion for improving adhesive strength of all types of commonly used mortars. It is suitable as an admixture for obtaining waterproof concrete and mortars. It is suitable for preparation of repair mortars.

Products Catalogue

Product Properties

  • Reduced degree of shrinkage
  • Controlled thermal expansion
  • Increased bending tensile strengths
  • Increased resistance to carbonation
  • The fresh mortar is considerably plasticized
  • Increased chemical and abrasion resistance
  • Lowering the permeability and chloride ingress
  • More economical than Epoxy or Polyester Resin mortar
  • The compressive and flexural strength is increased compared to the reference mix

Areas of Application

  • Bonding slurry between hardened concrete and fresh topping of concrete or mortars
  • For bonding new cementitious materials to existing cementitious substrates on horizontal or vertical surfaces
  • The production of repair mortars, e.g. in the repair and filling of structural concrete in bridge building and civil engineering
  • Cold joints between old and new concrete can be made strong and non-permeable with bonding slurry consisting of Nafufill SBR and cement mortar
  • Second component for Dichtament DS waterproofing system
  • Bonding mortars for bonding of hard-burned bricks, asbestos cement, natural stones, tiles etc.
  • Repairs mortars for mending damaged spots in precast concrete industry, pipelines etc.
  • Improvement of the mechanical characteristics of ready-to-use coarse and fine repair mortars intended for the repair of concrete (such as Zentrifix AS & Nafuquick)

TECHNICAL INFORMATION

CHARACTERISTICS UNIT VALUE Comments

Density
Kg/dm3

1.01

± 0.01

Flow table spread

Cm

20

Average

Adhesive strength in Tension:
Specimens stored At 23 ̊C & 50% RH.
N/mm2

7 days: 2.2
28 days: 2.5
90 days: 3.7

Failures by Fracture in the concrete

Compressive strength of mortar system
N/mm2

2 days: 29
7 days: 35
28 days: 57

4x4x16 cm prisms tested

Flexural strength of mortar system
N/mm2

2 days: 6.3
7 days: 7.5
28 days: 11.9

4x4x16 cm prisms tested
