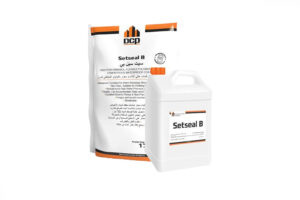

Setseal B

Setseal B is a two component; elastomeric polymer
modified cementious waterproof coating suitable for
internal and external applications.  Setseal B provides a hardwearing, seamless, waterproof membrane for potable water retaining structures, tanks,
basements, foundations and culverts.

Applications

  • Waterproofing of bathrooms and wet areas.
  • Waterproofing of Swimming pools and fountains.
  • Waterproofing of basements, roof, and foundations.
  • Waterproofing of water retaining structures and reservoirs.
  • Works as a barrier for rising damp and efflorescence when applied on concrete or masonry walls.
  • Protection of concrete substrates and masonry against water, carbon dioxide, chloride ions, salts, seawater and de-icing salts.
Products Catalogue

Advantages

  • Breathable.
  • Fungus and mould resistant.
  • Non-toxic, approved for use in contact with potable water.
  • Elastomeric, can accommodate static and dynamic cracks.
  • Able to withstand high positive and negative water pressures.
  • Suitable for internal and external applications.
  • Excellent bond to porous and non-porous surfaces.
  • Cost effective, quick and easy brush or spray application.
  • Durable, excellent protection against carbon dioxide, chloride ions and water.

Technical Properties:

Technical Properties @ 250C

Mixed density
1.85 g/cm 3

Working time

45 min

Colour

Grey or white

Resistance to water pressure
(2 mm coating): DIN 1048

> 70 m positive (7 bars)
> 50 m negative (5 bars)

Static crack
accommodation:

> 0.8 mm

Mixing ratio

5.1 kg liquid polymer with

17.9 kg powder

VOC

< 10 g/ltr (powder)
< 20 g/ltr (liquid)

Minimum application temperature:

5°C

Bond Strength on
normal concrete:
ASTM D4541

≥ 1.5 MPa @ 28 days

Bond Strength on
gypsum boards:
ASTM D4541

Gypsum failure

Tensile strength:
BS 6319, Part 7
(mortar consistency)

≥ 2 MPa @ 28 days
(dry cure)

Flexural strength:
(mortar consistency)
ASTM C348

> 8 MPa (dry cure)

Compressive strength:
ASTM C109 (mortar consistency)

≥ 15 MPa
(dry cure)

Elongation at break:
ASTM D412(without reinforcement @thicknesses > 2 mm)

≥ 15% @ low speed rate
≥ 5% @ high speed rate
